The Hidden Recurrence in Softmax Attention: A Path to Flash Attention

Paper: https://arxiv.org/abs/2205.14135
Paper: https://arxiv.org/abs/2307.08691
Code: https://github.com/Dao-AILab/flash-attention
Disclaimer: These are personal reading notes. Some derivations are my own and may be incorrect, so they should be cross-checked against the code later.

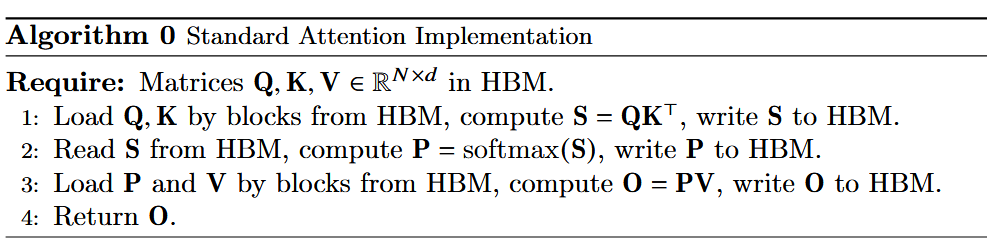

Standard Attention

Forward Pass

\[\begin{aligned} \mathbf{O} &= \text{Diag}\left( \left(\exp(\mathbf{Q}\mathbf{K}^\top ) \odot \mathbf{M}\right)\boldsymbol{1}\right)^{-1} \left( \exp(\mathbf{Q}\mathbf{K}^\top) \odot \mathbf{M}\right)\mathbf{V} \end{aligned}\]

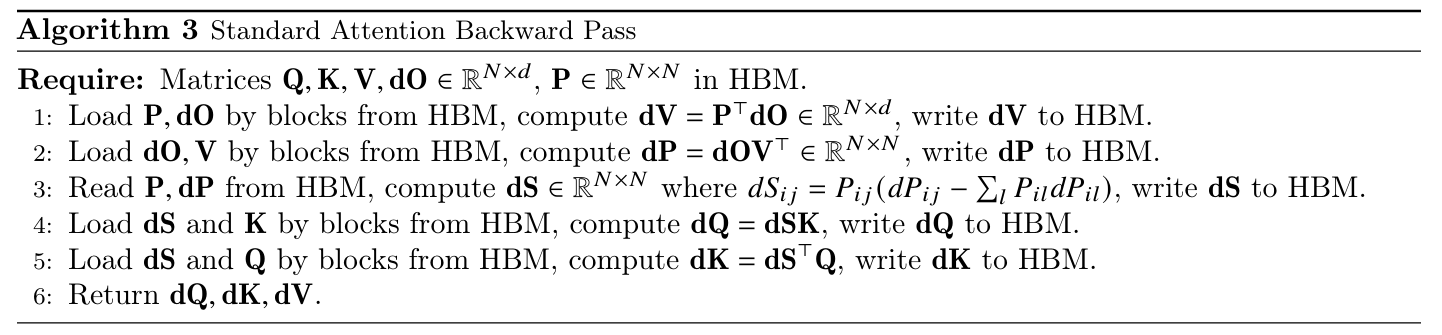

Backward Pass

Before deriving the standard attention backward, considering a simple case:

\[\begin{aligned} \mathbf{Y} &= \text{Diag}\left( \mathbf{X}\boldsymbol{1}\right)^{-1} \\ \\ \Rightarrow \delta \mathbf{X} &= \text{diag}\left( - \mathbf{Y}^\top \delta \mathbf{Y} \mathbf{Y}^\top \right) \boldsymbol{1}^\top = - \text{diag}\left( \mathbf{Y} \delta \mathbf{Y} \mathbf{Y} \right) \boldsymbol{1}^\top = - \mathbf{Y}^2 \text{diag}\left( \delta \mathbf{Y} \right) \boldsymbol{1}^\top \end{aligned}\]

Then the standard attention backward can be derived as follow:

\[\begin{aligned} \mathbf{O} &= \text{Diag}\left( \left(\exp(\mathbf{Q}\mathbf{K}^\top ) \odot \mathbf{M}\right)\boldsymbol{1}\right)^{-1} \left( \exp(\mathbf{Q}\mathbf{K}^\top) \odot \mathbf{M}\right)\mathbf{V} \\ \\ \Rightarrow \delta \left(\exp(\mathbf{Q}\mathbf{K}^\top) \odot \mathbf{M}\right) &= \text{Diag}\left(\left(\exp(\mathbf{Q}\mathbf{K}^\top ) \odot \mathbf{M}\right) \boldsymbol{1}\right)^{-1} \delta \mathbf{O} \mathbf{V}^\top \\ &- \text{Diag}\left(\left(\exp(\mathbf{Q}\mathbf{K}^\top ) \odot \mathbf{M}\right) \boldsymbol{1}\right)^{-2} \text{diag}\left( \delta \mathbf{O} \mathbf{V}^\top \left(\exp(\mathbf{Q}\mathbf{K}^\top ) \odot \mathbf{M}\right)^\top\right) \boldsymbol{1}^\top \\ &= \text{Diag}\left(\left(\exp(\mathbf{Q}\mathbf{K}^\top ) \odot \mathbf{M}\right) \boldsymbol{1}\right)^{-1} \left( \delta \mathbf{O} \mathbf{V}^\top - \text{diag}\left(\delta \mathbf{O} \mathbf{O}^\top \right) \boldsymbol{1}^\top \right) \\ \\ \Rightarrow \delta \mathbf{V} &= \left(\exp(\mathbf{Q}\mathbf{K}^\top ) \odot \mathbf{M}\right)^\top \text{Diag}\left(\left(\exp(\mathbf{Q}\mathbf{K}^\top ) \odot \mathbf{M}\right) \boldsymbol{1} \right)^{-1} \delta \mathbf{O} \\ \\ \delta \mathbf{Q} &= \left( \delta \left(\exp(\mathbf{Q}\mathbf{K}^\top) \odot \mathbf{M}\right) \odot \left(\exp(\mathbf{Q}\mathbf{K}^\top) \odot \mathbf{M}\right) \right) \mathbf{K} \\ \\ \delta \mathbf{K} &= \left( \delta \left(\exp(\mathbf{Q}\mathbf{K}^\top) \odot \mathbf{M}\right) \odot \left(\exp(\mathbf{Q}\mathbf{K}^\top) \odot \mathbf{M}\right) \right)^\top \mathbf{Q} \end{aligned}\]

The Hidden Recurrence behind Softmax Attention

Recurrent mode

comment: The key to designing a tile-based algorithm where every local part relates to the global information is to find the recurrence. So here we find the hidden recurrent mode behind softmax dot-product attention.

Considering $\(\begin{aligned} \mathbf{O} &= \frac{\exp(\mathbf{Q}\mathbf{K}^\top)}{\sum_k \exp(\mathbf{Q}\mathbf{K}^\top)} \mathbf{V} \quad \Leftrightarrow \quad \mathbf{O} = \text{Diag}\left( \exp(\mathbf{Q}\mathbf{K}^\top) \boldsymbol{1}\right)^{-1} \exp(\mathbf{Q}\mathbf{K}^\top)\mathbf{V} \\ \\ \Leftrightarrow \boldsymbol{o}_t &= \frac{ \sum_{i=1}^L \boldsymbol{v}_i \exp(\boldsymbol{k}_i^\top\boldsymbol{q}_t) } {\sum_{i=1}^L \exp(\boldsymbol{k}_i^\top\boldsymbol{q}_t)} \end{aligned}\)$

We set

\[\begin{aligned} \boldsymbol{a}^j_t = \sum_{i=1}^t \boldsymbol{v}_i \exp(\boldsymbol{k}_i^\top\boldsymbol{q}_j) ,\quad l^j_t = \sum_{i=1}^t \exp(\boldsymbol{k}_i^\top\boldsymbol{q}_j) ,\quad \boldsymbol{a}^t_L = l^t_L \boldsymbol{o}_t \end{aligned}\]

Then we have

\[\begin{aligned} l^j_t &= l^j_{t-1} + \exp(\boldsymbol{k}_t^\top\boldsymbol{q}_j) \\ \\ \boldsymbol{a}^j_{t} &= \sum_{i=1}^t \boldsymbol{v}_i \exp(\boldsymbol{k}_i^\top\boldsymbol{q}_j) = \boldsymbol{a}^j_{t-1} + \boldsymbol{v}_t \exp(\boldsymbol{k}_t^\top\boldsymbol{q}_j) \end{aligned}\]

Chunk-wise Mode

We set \(\mathbf{M}\) as the causal mask or no mask below.

\[\begin{aligned} \mathbf{O}_{[t]} &= \text{Diag}\left(\boldsymbol{ll}^{[t]}_{[L]}\right)^{-1} \mathbf{A}^{[t]}_{[L]} \\ \\ \boldsymbol{ll}^{[j]}_{[t]} &= \boldsymbol{ll}^{[j]}_{[t-1]} + \left(\exp \left(\mathbf{Q}_{[j]}\mathbf{K}_{[t]}^\top\right) \odot \mathbf{M}\right) \boldsymbol{1} \\ \\ \mathbf{A}^{[j]}_{[t]} &= \mathbf{A}^{[j]}_{[t-1]} + \left(\exp \left(\mathbf{Q}_{[j]}\mathbf{K}_{[t]}^\top\right) \odot \mathbf{M}\right) \mathbf{V}_{[t]} \end{aligned}\]

After we set

\[\begin{aligned} \mathbf{S}_{[t],[\tau]} &= \mathbf{Q}_{[t]}\mathbf{K}_{[\tau]}^\top \in \mathbb{R}^{N \times M} ,\quad \boldsymbol{m}_{[t],\tau} \in \mathbb{R}^{N} \\ \\ \mathbf{P}_{[t],[\tau]} &= \text{Diag}\left(\boldsymbol{m}_{[t],\tau}\right)^{-1} \left( \exp \left(\mathbf{S}_{[t],[\tau]}\right) \odot \mathbf{M} \right) \in \mathbb{R}^{N \times M} \\ \\ \boldsymbol{l}_{[t],[\tau]} &= \mathbf{P}_{[t],[\tau]} \boldsymbol{1} \in \mathbb{R}^{N} \end{aligned}\]

we have

\[\begin{aligned} \boldsymbol{l}^{[t]}_{[\tau]} &= \boldsymbol{ll}^{[t]}_{[\tau]} \oslash \boldsymbol{m}^{\tau}_{[t]} = \text{Diag}\left(\boldsymbol{m}^{\tau-1}_{[t]}\right) \text{Diag}\left(\boldsymbol{m}^\tau_{[t]}\right)^{-1} \boldsymbol{l}^{[t]}_{[\tau-1]} + \text{Diag}\left(\boldsymbol{m}_{[t],\tau}\right) \text{Diag}\left(\boldsymbol{m}^\tau_{[t]}\right)^{-1} \boldsymbol{l}_{[t],[\tau]} \\ \\ \mathbf{A}^{[t]}_{[\tau]} &= \mathbf{A}^{[t]}_{[\tau-1]} + \text{Diag}\left(\boldsymbol{m}_{[t],\tau}\right) \mathbf{P}_{[t],[\tau]}\mathbf{V}_{[\tau]} \end{aligned}\]

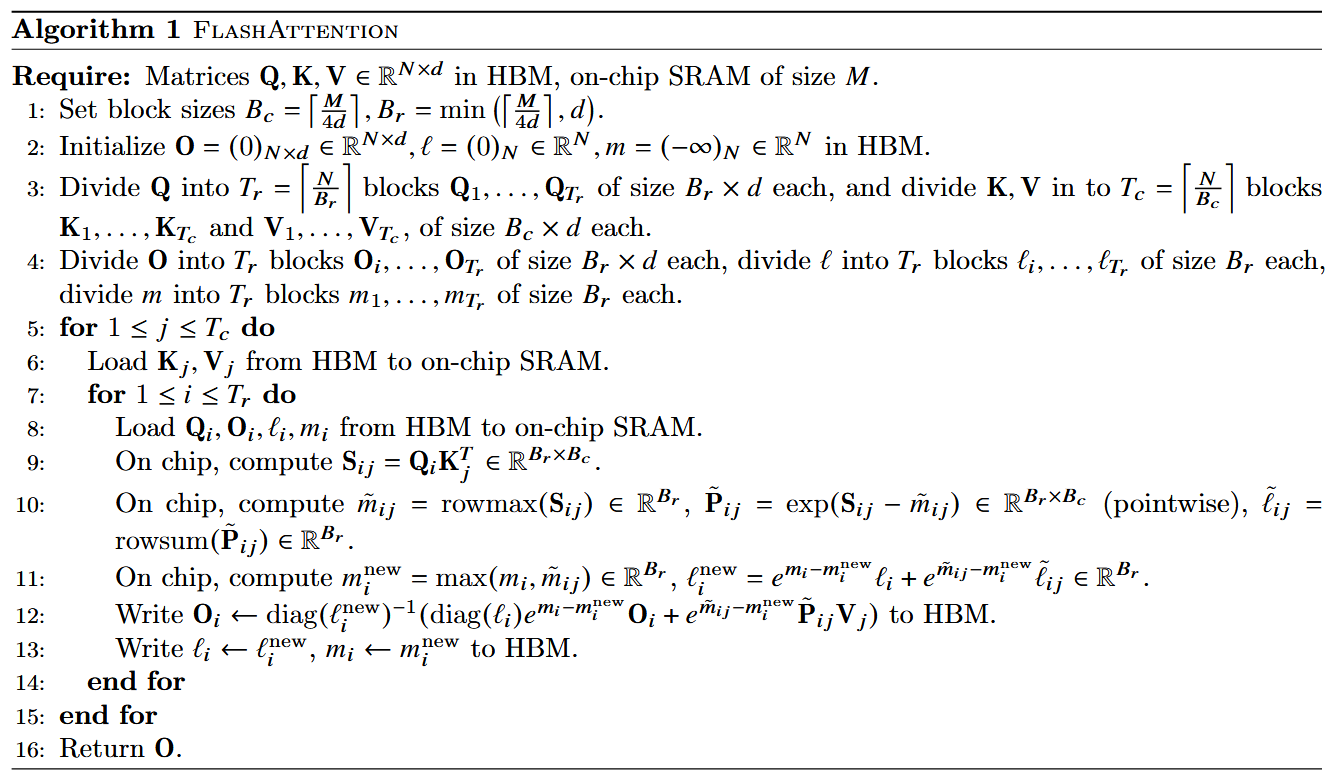

Chunk-wise Mode with Online Softmax Re-scale

For numerical stability, we often consider the rescaling trick for softmax. We set the scale as the exponential of row-max of past \(\mathbf{QK}^\top\). So we define:

\[\begin{aligned} \boldsymbol{m}^{\tau}_{[t]} &= \max(\boldsymbol{m}^{\tau-1}_{[t]}, \boldsymbol{m}_{[t],\tau}) \\ \\ \boldsymbol{l}^{[t]}_{[\tau]} &= \text{Diag}\left(\boldsymbol{m}^{\tau-1}_{[t]}\right) \text{Diag}\left(\boldsymbol{m}^\tau_{[t]}\right)^{-1} \boldsymbol{l}^{[t]}_{[\tau-1]} + \text{Diag}\left(\boldsymbol{m}_{[t],\tau}\right) \text{Diag}\left(\boldsymbol{m}^\tau_{[t]}\right)^{-1} \boldsymbol{l}_{[t],[\tau]} \\ \\ \mathbf{C}^{[t]}_{[\tau]} &= \text{Diag}\left(\boldsymbol{m}^\tau_{[t]}\right)^{-1} \mathbf{A}^{[t]}_{[\tau]} \\&= \text{Diag}\left(\boldsymbol{m}^{\tau-1}_{[t]}\right) \text{Diag}\left(\boldsymbol{m}^\tau_{[t]}\right)^{-1} \mathbf{C}^{[t]}_{[\tau-1]} + \text{Diag}\left(\boldsymbol{m}_{[t],\tau}\right) \text{Diag}\left(\boldsymbol{m}^\tau_{[t]}\right)^{-1} \mathbf{P}_{[t],[\tau]}\mathbf{V}_{[\tau]} \\ \\ \mathbf{O}^{[t]} &= \text{Diag}\left(\boldsymbol{l}^{[t]}_{L}\right)^{-1} \mathbf{C}^{[t]}_{[L]} \end{aligned}\]

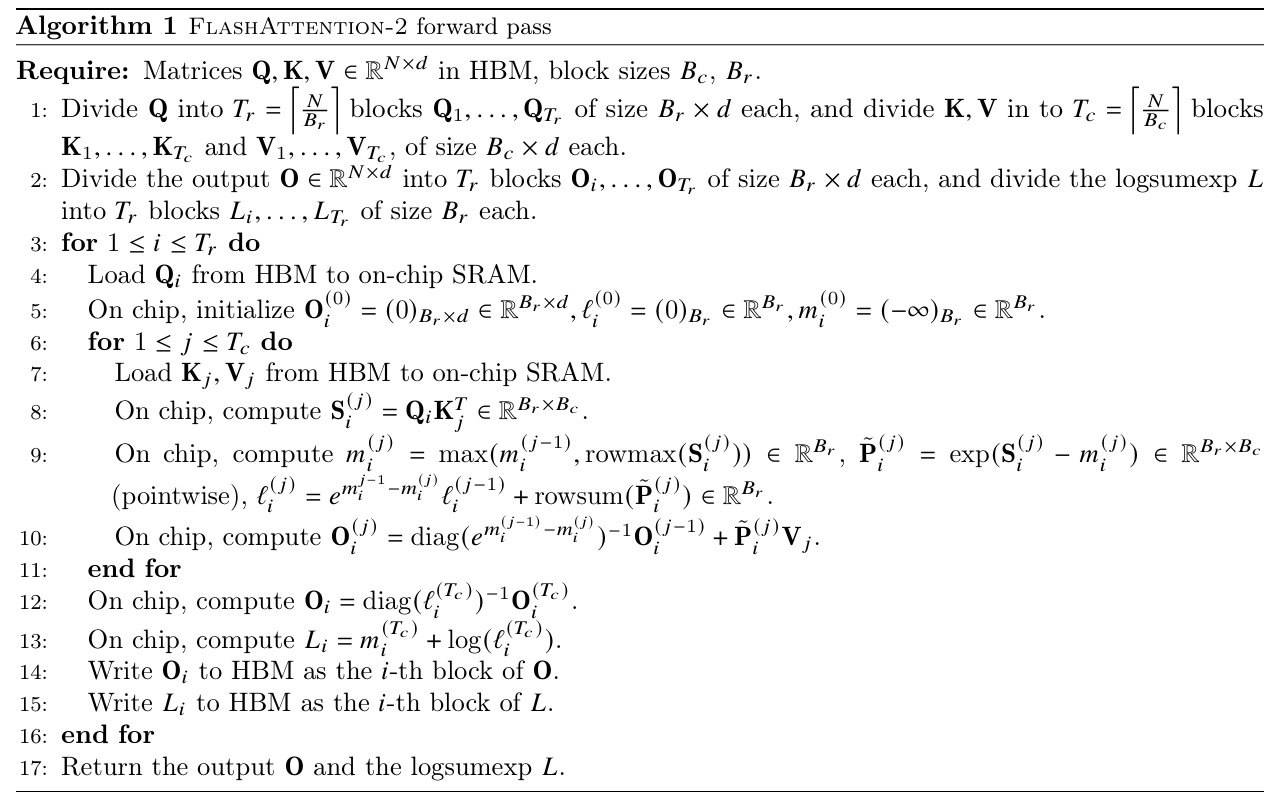

Now, with the addition of the inner-outer loop exchange and the position where the logsumexp scale is introduced, we've essentially derived the core logic of FlashAttention v1/v2 from scratch.

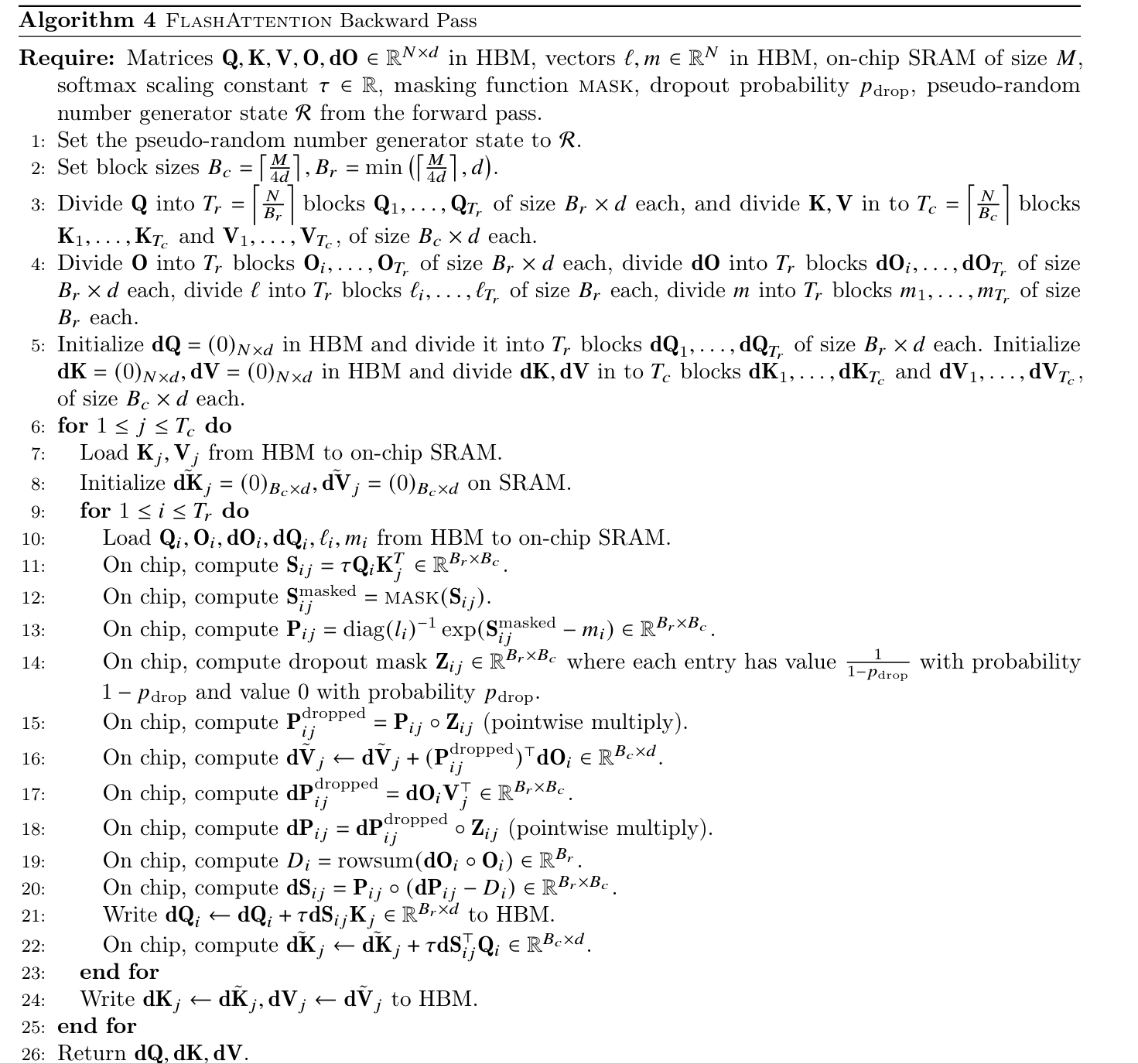

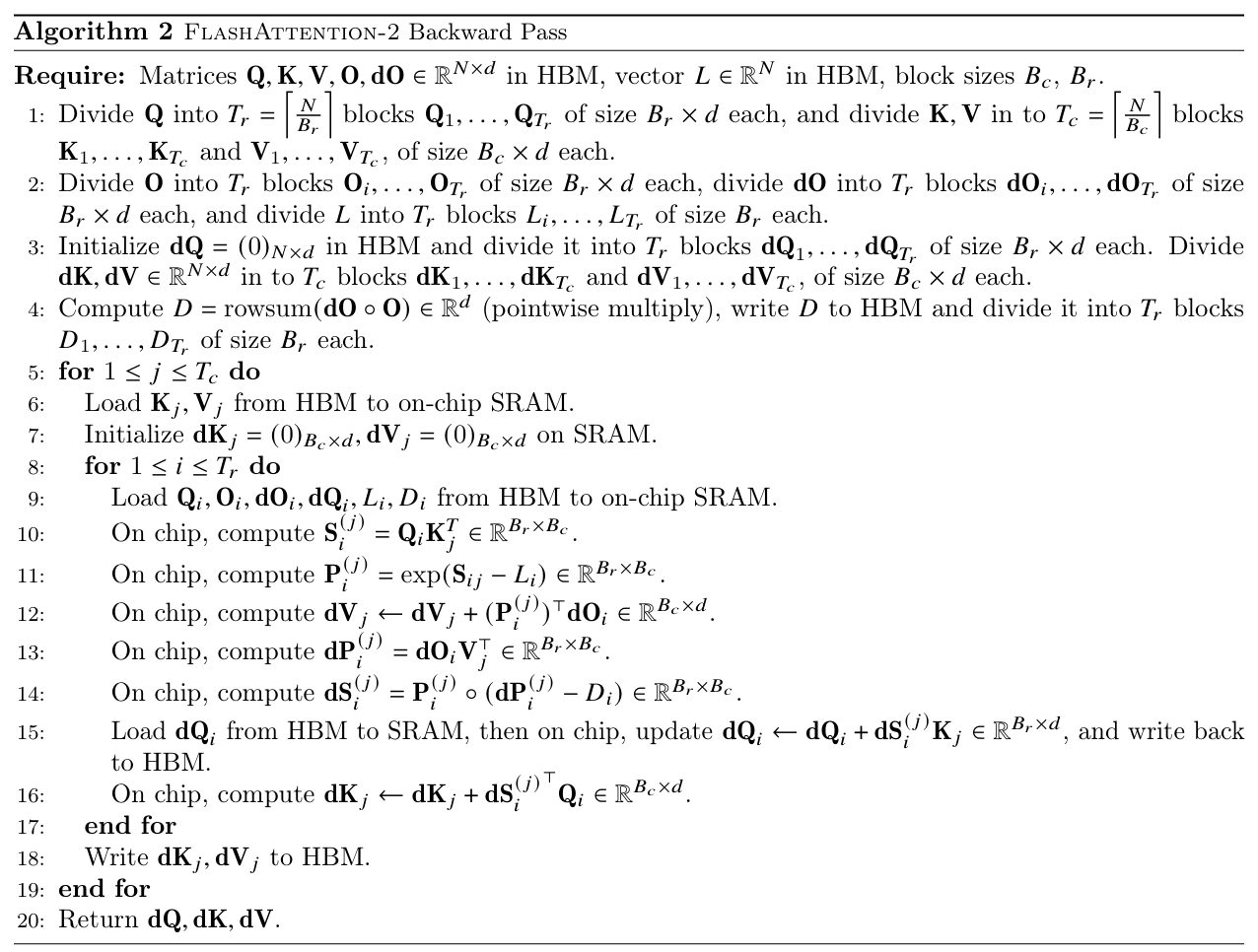

Flash Attention Backward Pass

comment: The exponential of row-max \(\boldsymbol{m}\) is computed from the input, but can be treated as a constant for gradient purposes. However, \(\boldsymbol{l}\) is a smooth function of the input, so gradient does flow through it.

Revisiting the Forward Pass

\[\begin{aligned} \mathbf{P}_{[t],[\tau]} &= \text{Diag}\left(\boldsymbol{m}_{[t],\tau}\right)^{-1} \left( \exp \left(\mathbf{Q}_{[t]}\mathbf{K}_{[\tau]}^\top \right)\odot \mathbf{M} \right) \in \mathbb{R}^{N \times M} \\ \\ \boldsymbol{l}^{[t]}_{[\tau]} &= \text{Diag}\left(\boldsymbol{m}^{\tau-1}_{[t]}\right) \text{Diag}\left(\boldsymbol{m}^\tau_{[t]}\right)^{-1} \boldsymbol{l}^{[t]}_{[\tau-1]} + \text{Diag}\left(\boldsymbol{m}_{[t],\tau}\right) \text{Diag}\left(\boldsymbol{m}^\tau_{[t]}\right)^{-1} \mathbf{P}_{[t],[\tau]} \boldsymbol{1} \\ \\ \mathbf{C}^{[t]}_{[\tau]} &= \text{Diag}\left(\boldsymbol{m}^{\tau-1}_{[t]}\right) \text{Diag}\left(\boldsymbol{m}^\tau_{[t]}\right)^{-1} \mathbf{C}^{[t]}_{[\tau-1]} + \text{Diag}\left(\boldsymbol{m}_{[t],\tau}\right) \text{Diag}\left(\boldsymbol{m}^\tau_{[t]}\right)^{-1} \mathbf{P}_{[t],[\tau]}\mathbf{V}_{[\tau]} \\ \\ \mathbf{O}^{[t]} &= \text{Diag}\left(\boldsymbol{l}^{[t]}_{L}\right)^{-1} \mathbf{C}^{[t]}_{[L]} \end{aligned}\]

Gradient at the Output

Assuming we have stored \(\boldsymbol{l}\) and \(\boldsymbol{m}\) from the forward pass, we begin back propagation from \(\mathbf{O}^{[t]}\):

\[\begin{aligned} \delta \mathbf{C}^{[t]}_{[L]} &= \text{Diag}\left(\boldsymbol{l}^{[t]}_{[L]}\right)^{-1} \delta \mathbf{O}^{[t]} \\ \\ \delta \boldsymbol{l}^{[t]}_{[L]} &= - \text{diag}\left( \text{Diag}\left(\boldsymbol{l}^{[t]}_{[L]}\right)^{-\top} \left(\delta \mathbf{O}^{[t]} (\mathbf{C}^{[t]}_{[L]})^\top \right) \text{Diag}\left(\boldsymbol{l}^{[t]}_{[L]}\right)^{-\top} \right) = - \text{diag}\left(\delta \mathbf{O}^{[t]} (\mathbf{O}^{[t]})^\top \right) \oslash \boldsymbol{l}^{[t]}_{[L]} \\ \\ \delta \boldsymbol{l}^{[t]}_{[\tau-1]} &= \left( \text{Diag}\left(\boldsymbol{m}^{\tau-1}_{[t]}\right) \text{Diag}\left(\boldsymbol{m}^\tau_{[t]}\right)^{-1} \right)^\top \delta \boldsymbol{l}^{[t]}_{[\tau]} = \left( \text{Diag}\left(\boldsymbol{m}^{\tau-1}_{[t]}\right) \text{Diag}\left(\boldsymbol{m}^L_{[t]}\right)^{-1} \right)^\top \delta \boldsymbol{l}^{[t]}_{[L]} \\ \\ \delta \mathbf{C}^{[t]}_{[\tau-1]} &= \left( \text{Diag}\left(\boldsymbol{m}^{\tau-1}_{[t]}\right) \text{Diag}\left(\boldsymbol{m}^\tau_{[t]}\right)^{-1} \right)^\top \delta \mathbf{C}^{[t]}_{[\tau]} \\ \\ \left.\delta \mathbf{V}_{[\tau]}\right|_{\text{from [t]}} &= \mathbf{P}_{[t],[\tau]}^\top \left( \text{Diag}\left(\boldsymbol{m}_{[t],\tau}\right) \text{Diag}\left(\boldsymbol{m}^\tau_{[t]}\right)^{-1} \right)^\top \delta \mathbf{C}^{[t]}_{[\tau]} = \left( \exp \left(\mathbf{Q}_{[t]}\mathbf{K}_{[\tau]}^\top\right) \odot \mathbf{M} \right)^\top \text{Diag}\left(\boldsymbol{m}^\tau_{[t]}\right)^{-1} \delta \mathbf{C}^{[t]}_{[\tau]} \\ \\ \delta \mathbf{P}_{[t],[\tau]} &= \left( \text{Diag}\left(\boldsymbol{m}_{[t],\tau}\right) \text{Diag}\left(\boldsymbol{m}^\tau_{[t]}\right)^{-1} \right)^\top \left( \delta \boldsymbol{l}^{[t]}_{[\tau]} \boldsymbol{1}^\top + \delta \mathbf{C}^{[t]}_{[\tau]} \mathbf{V}_{[\tau]}^\top \right) \\ &= \left( \text{Diag}\left(\boldsymbol{m}_{[t],\tau}\right) \text{Diag}\left(\boldsymbol{m}^L_{[t]}\right)^{-1} \right)^\top \delta \mathbf{l}^{[t]}_{[L]} \boldsymbol{1}^\top + \left( \text{Diag}\left(\boldsymbol{m}_{[t],\tau}\right) \text{Diag}\left(\boldsymbol{m}^\tau_{[t]}\right)^{-1} \right)^\top \delta \mathbf{C}^{[t]}_{[\tau]} \mathbf{V}_{[\tau]}^\top \\ \\ \left.\delta \mathbf{Q}_{[t]}\right|_{\text{from } \mathbf{P}_{[t],[\tau]}} &= \left( \delta \exp \left(\mathbf{Q}_{[t]}\mathbf{K}_{[\tau]}^\top\right) \odot \exp \left(\mathbf{Q}_{[t]}\mathbf{K}_{[\tau]}^\top\right) \right) \mathbf{K}_{[\tau]} \\ &= \left( \text{Diag}\left(\boldsymbol{m}_{[t],\tau}\right)^{-1} \delta \mathbf{P}_{[t],[\tau]} \odot \mathbf{M} \odot \exp \left(\mathbf{Q}_{[t]}\mathbf{K}_{[\tau]}^\top\right) \right) \mathbf{K}_{[\tau]} \\&= \left( \delta \mathbf{P}_{[t],[\tau]} \odot \mathbf{P}_{[t],[\tau]} \right) \mathbf{K}_{[\tau]} \\ \\ \left.\delta \mathbf{K}_{[\tau]}\right|_{\text{from } \mathbf{P}_{[t],[\tau]}} &= \left( \delta \exp \left(\mathbf{Q}_{[t]}\mathbf{K}_{[\tau]}^\top\right) \odot \exp \left(\mathbf{Q}_{[t]}\mathbf{K}_{[\tau]}^\top\right) \right) ^\top \mathbf{Q}_{[t]} \\ &= \left( \delta \mathbf{P}_{[t],[\tau]} \odot \mathbf{P}_{[t],[\tau]} \right) ^\top \mathbf{Q}_{[t]} \end{aligned}\]

comment: The key insight of the backward pass is that re-computation replaces storage. Rather than saving the full attention matrix \(\mathbf{P}\) from the forward pass, we only store \(\boldsymbol{l}\) and \(\boldsymbol{m}\), then recompute the attention matrix tile-by-tile during the backward pass.
