Reading Notes: DeltaNet
Paper: https://arxiv.org/abs/2406.06484
Code: https://github.com/fla-org/flash-linear-attention
Disclaimer: These are personal reading notes. Some derivations are my own and may be incorrect, so they should be cross-checked against the code later.
Motivation
- Most linear attention models still underperform Transformers, especially on tasks that require in-context retrieval.
- Training with the Delta Rule is not efficient enough.
Notations
- Bold uppercase letters such as
S and Q denote matrices.
- Symbols like
q_t and k_t denote column vectors with shape [d, 1], while matrices are written in shape [L, d]. Because of this convention, some transpose operations will appear.
- Symbols like
W_t denote learnable parameters.
q_t refers to the t-th row of Q.- \(\square_{[t]} = \square_{[t]}^{1:C} \in \mathbb{R}^{C \times d} \quad\text{for}\quad \square \in \{ \mathbf{Q, K, V,...} \}\)
Background
1. GLA
\[\begin{aligned}
\mathbf{O} = (\mathbf{Q}\mathbf{K}^\top \odot \mathbf{M}) \mathbf{V}
\Leftrightarrow
\boldsymbol{o}_r = \sum_{i=1}^r \boldsymbol{v}_i \boldsymbol{k}_i^\top \boldsymbol{q}_r
\end{aligned}\]
2. DeltaNet
DeltaNet can be viewed as an SGD optimizer.
Parallelizing DeltaNet
Forward
Comment: At inference time, the goal is to minimize memory usage as much as possible while relying on matrix operations whenever possible.
Comment: Assuming this has not already been worked out before, the main technical difficulty in the derivation seems to come from the Householder transform.
First, let us recall the DeltaNet update:
\[\begin{aligned}
\mathbf{S}_t
&=
\mathbf{S}_{t-1} - \boldsymbol{v}_t^{\text{old}} \boldsymbol{k}_t^\top + \boldsymbol{v}_t^{\text{new}} \boldsymbol{k}_t^\top
\\&=
\mathbf{S}_{t-1} - \beta_t (\mathbf{S}_{t-1} \boldsymbol{k}_t) \boldsymbol{k}_t^\top + \beta_t \boldsymbol{v}_t \boldsymbol{k}_t^\top
\\&=
\mathbf{S}_{t-1}(\mathbf{I} - \beta_t \boldsymbol{k}_t \boldsymbol{k}_t^\top) + \beta_t \boldsymbol{v}_t \boldsymbol{k}_t^\top
\end{aligned}\]
Next, following the same idea as in GLA, define the chunkwise notation and the following auxiliary quantities:
\[\begin{aligned}
\square_{[t]} &= \square_{[t]}^{1:C} \in \mathbb{R}^{C \times d} \quad\text{for}\quad \square \in \{ \mathbf{Q, K, V,...} \}
\\
\\
\mathbf{P}_{[t]}^{r} &= \prod_{i=t C + 1}^{t C + r}(\mathbf{I} - \beta_{i} \boldsymbol{k}_{i} \boldsymbol{k}_{i}^{\top})
\in \mathbb{R}^{d \times d}
,\quad
\mathbf{H}_{[t]}^{r} = \sum_{i=tC + 1}^{tC + r} \beta_{i} (\boldsymbol{v}_{i} \boldsymbol{k}_{i}^{\top})
\left(
\prod_{j=i + 1}^{t C + r}(\mathbf{I} - \beta_{j} \boldsymbol{k}_{j} \boldsymbol{k}_{j}^{\top})
\right)
\in \mathbb{R}^{d \times d}
\end{aligned}\]
Then the chunkwise state can be written as:
\[\begin{aligned}
\mathbf{S}_{[t]}^{r}
=
\mathbf{S}_{[t-1]}^{C} \mathbf{P}_{[t]}^{r} + \mathbf{H}_{[t]}^{r}
, \quad
\text{where }
\mathbf{S}_{[-1]}^{C} = \mathbf{0}
\end{aligned}\]
On the other hand, suppose that:
\[\begin{aligned}
\boldsymbol{u}_1 = \beta_1 \boldsymbol{v}_1 , \quad \mathbf{S}_1 = \beta_1 \boldsymbol{v}_1 \boldsymbol{k}_1^\top
\end{aligned}\]
From this, we can show by induction that:
\[\begin{aligned}
\mathbf{S}_t = \mathbf{S}_{t-1} + \beta_t (\boldsymbol{v}_t - \mathbf{S}_{t-1} \boldsymbol{k}_t )\boldsymbol{k}_t^\top
=
\sum_{i=1}^{t-1} \boldsymbol{u}_i \boldsymbol{k}_i^\top
+
\underbrace{\beta_t \left( \boldsymbol{v}_t - \sum_{i=1}^{t-1} \boldsymbol{u}_i (\boldsymbol{k}_i^\top \boldsymbol{k}_t) \right)}_{\text{defined as } \boldsymbol{u}_t} \boldsymbol{k}_t^\top
=
\sum_{i=1}^{t} \boldsymbol{u}_i \boldsymbol{k}_i^\top
\end{aligned}\]
Therefore, we obtain:
\[\begin{aligned}
\mathbf{H}_{[t]}^{r} =
\sum_{i=1}^{r} \boldsymbol{u}_{[t]}^{i} \boldsymbol{k}_{[t]}^{i\top}
, \quad
\boldsymbol{u}_{[t]}^{r} = \beta_{[t]}^{r} \left( \boldsymbol{v}_{[t]}^{r} - \sum_{i=1}^{r-1} \boldsymbol{u}_{[t]}^{i} \boldsymbol{k}_{[t]}^{i \top} \boldsymbol{k}_{[t]}^{r} \right)
\end{aligned}\]
Meanwhile, a product of Householder transforms of the form (I - beta_t k_t k_t^T) can always be written in a low-rank form using the WY representation. So let us assume:
\[\begin{aligned}
\mathbf{P}_{[t]}^{r} = \mathbf{I} - \sum_{i=1}^{r} \boldsymbol{w}_{[t]}^{i} \boldsymbol{k}_{[t]}^{i \top}
\end{aligned}\]
Then, again by induction, we get:
\[\begin{aligned}
\mathbf{P}_{[t]}^{r}
=
(\mathbf{I} - \sum_{i=1}^{r - 1} \boldsymbol{w}_{[t]}^{i} \boldsymbol{k}_{[t]}^{i \top}) (\mathbf{I} - \beta_{[t]}^{r} \boldsymbol{k}_{[t]}^{r} \boldsymbol{k}_{[t]}^{r \top})
=
\mathbf{I} - \sum_{i=1}^{r - 1} \boldsymbol{w}_{[t]}^{i} \boldsymbol{k}_{[t]}^{i \top}
-
\underbrace{\beta_{[t]}^{r} \left(\boldsymbol{k}_{[t]}^{r}
-
\sum_{i=1}^{r - 1} \boldsymbol{w}_{[t]}^{i} \boldsymbol{k}_{[t]}^{i \top} \boldsymbol{k}_{[t]}^{r} \right) }_{\text{defined as } \boldsymbol{w}_{[t]}^{r}}
\boldsymbol{k}_{[t]}^{r \top}
\end{aligned}\]
Thus, we arrive at:
\[\begin{aligned}
\mathbf{P}_{[t]}^{r} = \mathbf{I} - \sum_{i=1}^{r} \boldsymbol{w}_{[t]}^{i} \boldsymbol{k}_{[t]}^{i \top}
， \quad
\boldsymbol{w}_{[t]}^{r} = \beta_{[t]}^{r} \left( \boldsymbol{k}_{[t]}^{r} - \sum_{i=1}^{r-1} \boldsymbol{w}_{[t]}^{i} \boldsymbol{k}_{[t]}^{i \top} \boldsymbol{k}_{[t]}^{r} \right)
\end{aligned}\]
Substituting this back into the chunkwise recurrence gives:
\[\begin{aligned}
\mathbf{S}_{[t]}^{r}
&=
\mathbf{S}_{[t-1]}^{C} \left(\mathbf{I} - \sum_{i=1}^{r} \boldsymbol{w}_{[t]}^{i} \boldsymbol{k}_{[t]}^{i \top}\right)
+
\sum_{i=1}^{r} \boldsymbol{u}_{[t]}^{i} \boldsymbol{k}_{[t]}^{i\top}
=
\mathbf{S}_{[t-1]}^{C}
+
\sum_{i=1}^{r} \left(\boldsymbol{u}_{[t]}^{i} - \mathbf{S}_{[t-1]}^{C} \boldsymbol{w}_{[t]}^{i} \right)\boldsymbol{k}_{[t]}^{i\top}
\\
\\
\boldsymbol{o}_{[t]}^{r}
&=
\mathbf{S}_{[t]}^{r} \boldsymbol{q}_{[t]}^{r}
=
\mathbf{S}_{[t-1]}^{C} \boldsymbol{q}_{[t]}^{r}
+
\sum_{i=1}^{r} \left(\boldsymbol{u}_{[t]}^{i} - \mathbf{S}_{[t-1]}^{C} \boldsymbol{w}_{[t]}^{i} \right)\boldsymbol{k}_{[t]}^{i\top} \boldsymbol{q}_{[t]}^{r}
\end{aligned}\]
As a result, we can rewrite the whole computation in matrix form as:
\[\begin{aligned}
\mathbf{S}_{[t]}^{C}
&=
\mathbf{S}_{[t-1]}^{C}
+
\left(\mathbf{U}_{[t]}^\top - \mathbf{S}_{[t-1]}^{C} \mathbf{W}_{[t]}^\top \right)\mathbf{K}_{[t]}
\\
\\
\mathbf{O}_{[t]}
&=
\mathbf{Q}_{[t]} \mathbf{S}_{[t-1]}^{C \top}
+
\left( \mathbf{Q}_{[t]} \mathbf{K}_{[t]}^\top \odot \mathbf{M} \right) \left(\mathbf{U}_{[t]} - \mathbf{W}_{[t]} \mathbf{S}_{[t-1]}^{C \top} \right)
\end{aligned}\]
Next, we turn to u_[t] and w_[t]. Here, M_{-1} = M - I denotes the strictly lower-triangular mask whose diagonal entries are zero.
Starting from the recurrence for u_[t], we obtain:
\[\begin{aligned}
& \boldsymbol{u}_{[t]}^{r} = \beta_{[t]}^{r} \left( \boldsymbol{v}_{[t]}^{r} - \sum_{i=1}^{r-1} \boldsymbol{u}_{[t]}^{i} \boldsymbol{k}_{[t]}^{i \top} \boldsymbol{k}_{[t]}^{r} \right)
\\
\\
\Rightarrow &
\mathbf{U}_{[t]}
=
\text{Diag}(\boldsymbol{\beta}_{[t]}) \mathbf{V}_{[t]}
-
\text{Diag}(\boldsymbol{\beta}_{[t]}) \left( \mathbf{K}_{[t]} \mathbf{K}_{[t]}^\top \odot \mathbf{M}_{-1} \right) \mathbf{U}_{[t]}
\\
\\
\Rightarrow &
\left(\mathbf{I} + \text{Diag}(\boldsymbol{\beta}_{[t]}) \left( \mathbf{K}_{[t]} \mathbf{K}_{[t]}^\top \odot \mathbf{M}_{-1} \right) \right) \mathbf{U}_{[t]}
= \text{Diag}(\boldsymbol{\beta}_{[t]}) \mathbf{V}_{[t]}
\\
\\
\Rightarrow &
\mathbf{U}_{[t]}
=
\left(\mathbf{I} + \text{Diag}(\boldsymbol{\beta}_{[t]}) \left( \mathbf{K}_{[t]} \mathbf{K}_{[t]}^\top \odot \mathbf{M}_{-1} \right) \right)^{-1} \text{Diag}(\boldsymbol{\beta}_{[t]}) \mathbf{V}_{[t]}
\end{aligned}\]
By the same argument, we also have:
\[\begin{aligned}
\mathbf{W}_{[t]}
=
\left(\mathbf{I} + \text{Diag}(\boldsymbol{\beta}_{[t]}) \left( \mathbf{K}_{[t]} \mathbf{K}_{[t]}^\top \odot \mathbf{M}_{-1} \right) \right)^{-1} \text{Diag}(\boldsymbol{\beta}_{[t]}) \mathbf{K}_{[t]}
\end{aligned}\]
Therefore, in order to compute both U_[t] and W_[t], the key object is:
\[\begin{aligned}
\mathbf{T}_{[t]}
=
\left(\mathbf{I} + \text{Diag}(\boldsymbol{\beta}_{[t]}) \left( \mathbf{K}_{[t]} \mathbf{K}_{[t]}^\top \odot \mathbf{M}_{-1} \right) \right)^{-1} \text{Diag}(\boldsymbol{\beta}_{[t]})
\end{aligned}\]
Inversion of Unit Lower Triangular Matrices
In this section, we consider how to compute T_[t]. More generally, this reduces to inverting a unit lower-triangular matrix of the form A = I + L in R^{N x N}.
The overall strategy is as follows: first split the matrix into blocks, and then invert each block using the Neumann series together with recursive doubling.
Neumann Series
We begin with the Neumann series:
\[\begin{aligned}
(\mathbf{I} + \mathbf{L})^{-1}
=
\sum_{n=0}^{\infty} (- \mathbf{L})^n
\end{aligned}\]
Since a strictly lower-triangular matrix L is nilpotent, that is,
\[\begin{aligned}
\mathbf{L}^{C} = \mathbf{0} \quad \forall~ C \gt N
\end{aligned}\]
the infinite series actually truncates after finitely many terms. Therefore:
\[\begin{aligned}
(\mathbf{I} + \mathbf{L})^{-1}
=
\sum_{n=0}^{N - 1} (- \mathbf{L})^n
\end{aligned}\]
Recursive Doubling
Next, define:
\[\begin{aligned}
\mathbf{S}_{k} = \sum_{n=0}^{2^k-1} (- \mathbf{L})^n
, \quad
\mathbf{G}_{k} = (- \mathbf{L})^{2^k}
\end{aligned}\]
Then the recursion becomes:
\[\begin{aligned}
\mathbf{S}_{k+1} = \mathbf{S}_{k+1}(\mathbf{I} + \mathbf{G}_{k})
, \quad
\mathbf{G}_{k+1} = \mathbf{G}_{k} \mathbf{G}_{k}
\end{aligned}\]
Block Matrix Inversion 1
For a block lower-triangular matrix, we have the following inversion formula:
\[\begin{aligned}
\begin{pmatrix}
\mathbf{A}_{11} & \mathbf{0} \\
\mathbf{A}_{21} & \mathbf{A}_{22}
\end{pmatrix}
\begin{pmatrix}
\mathbf{A}_{11}^{-1} & \mathbf{0} \\
-\mathbf{A}_{22}^{-1} \mathbf{A}_{21} \mathbf{A}_{11}^{-1} & \mathbf{A}_{22}^{-1}
\end{pmatrix}
=
\begin{pmatrix}
\mathbf{I} & \mathbf{0} \\
\mathbf{0} & \mathbf{I}
\end{pmatrix}
\end{aligned}\]
Block Matrix Inversion 2
More generally, suppose AB = I, where A is block lower-triangular. Then B is also block lower-triangular, and moreover:
\[\begin{aligned}
\mathbf{B}_{ij} = -\mathbf{A}_{ii}^{-1} \sum_{k=j}^{i-1} \mathbf{A}_{ik} \mathbf{B}_{kj}
, \quad i \gt j
\end{aligned}\]

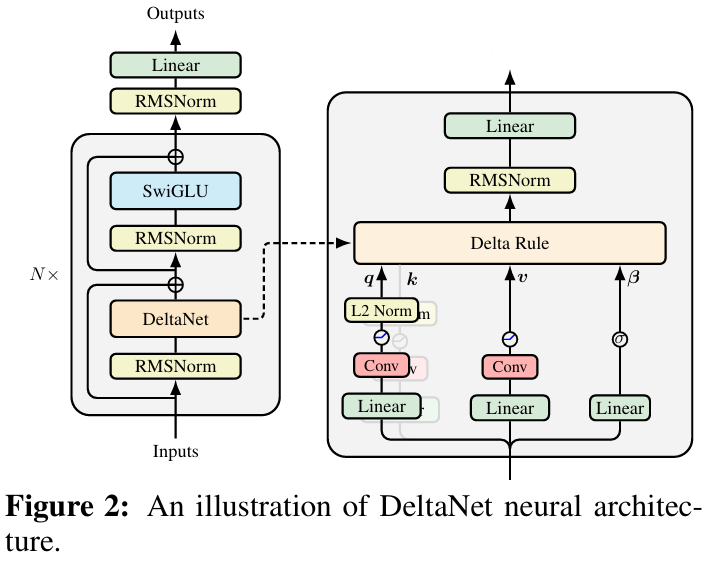

Network Architecture
The architecture follows a few practical design choices:
- RMSNorm is used for more stable training, similar to what is mentioned in VMamba and Mamba-2.
q and k are computed as
\(\frac{\text{SiLU}(\mathbf{W}\boldsymbol{x}_t)}{|\text{SiLU}(\mathbf{W}\boldsymbol{x}_t)|_2}\),
where SiLU replaces the original ELU + 1, and the L2 normalization ensures the eigenvalues stay below 1.
Comment: q is mostly included along the way here, but k needs to stay below 1 because of the k^T k term.
- Short convolution (shift-SSM) is still used, with motivation borrowed from H3 (Hungry Hungry Hippos).
Comment: Personally, I find Su Jianlin’s explanation more convincing: https://spaces.ac.cn/archives/11320
- A hybrid network design is adopted: GDN + SWA + full attention.
Experiments

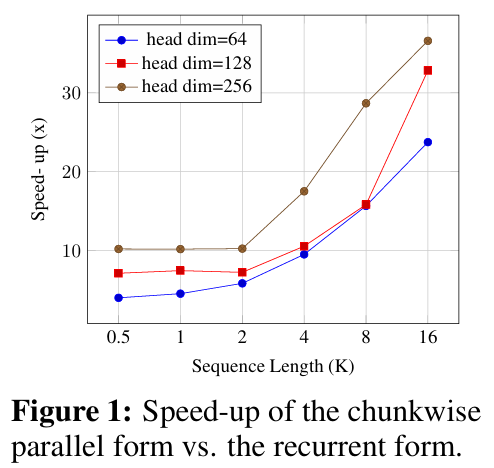

Acceleration

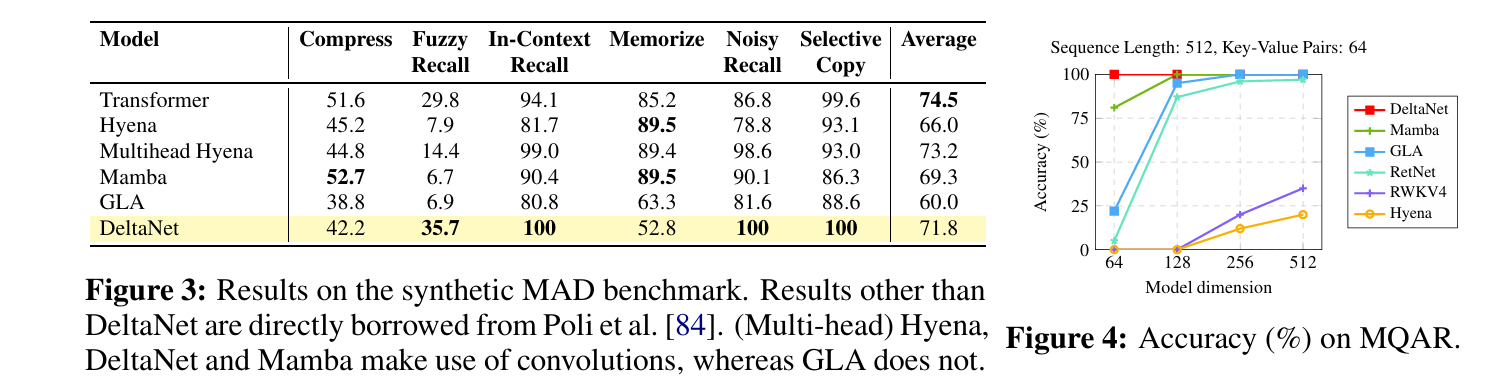

MQAR
This benchmark comes from Measuring and Improving Recall in Efficient Language Models. MQAR is used to evaluate recall ability. In this experiment, DeltaNet does not use convolution, while the other training settings remain the same as in the paper.
MAD
MAD is a collection of synthetic token manipulation tasks used to evaluate linear attention.

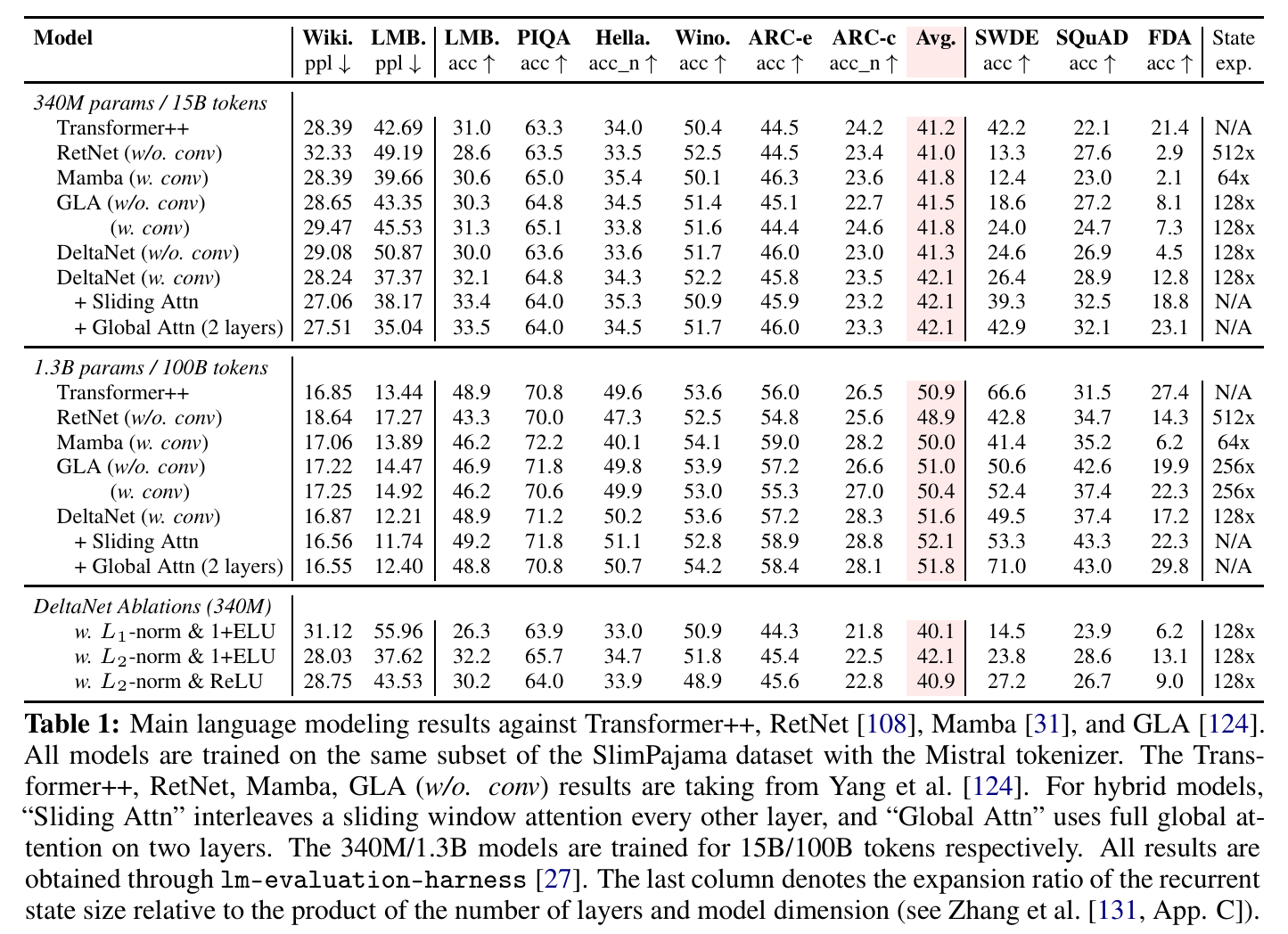

Language Modeling
The experimental setup is the same as in GLA.

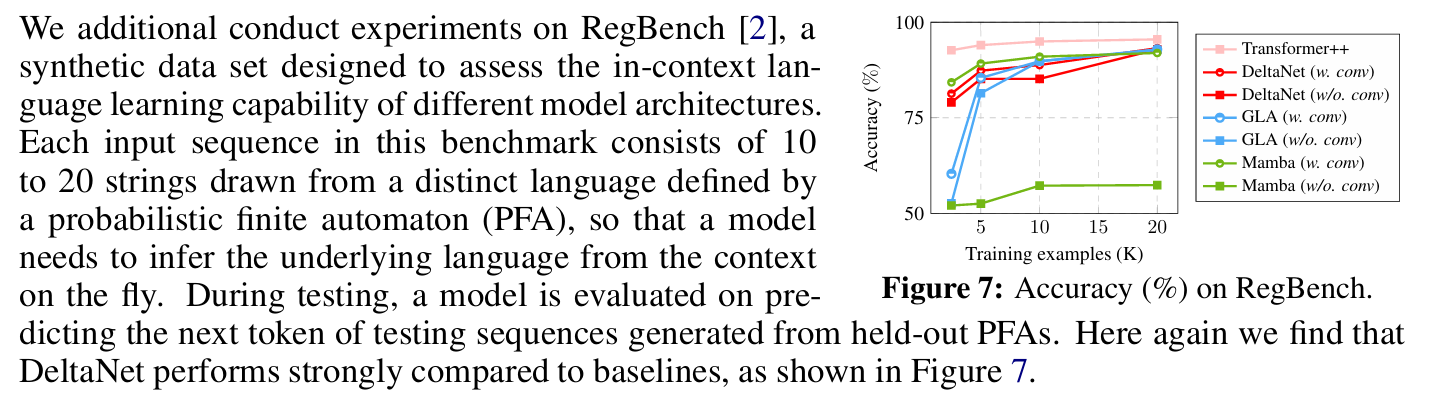

RegBench
Comment: The gap between Mamba with and without convolution looks surprisingly large. Could this be because the hidden state is smaller?
